Comfort Glow Infraded Vent Free Heater

NZ100 Comfort Glow Infraded Heater Replacement Parts:

1 097159-04 Piezo Ignitor
2 107673-01 Front Panel ( No Longer Available )
3 103476-01 Grill Guard ( No Longer Available )
4 118623-01 Remote Gas Control Valve ( No Longer Available )
5 104819-02 Regulator Bracket ( No Longer Available )
6 098211-13 Burner Deflector ( No Longer Available )
7 ** Cabinet
8 104103-07 Reflector ( No Longer Available )
9 098271-09 Ignitor Cable
10 119099-01 Lower Baffle ( No Longer Available )
11 M50104-03 Shorty Bushing ( Included with Fan Kit )
12 Burner AssemblySee Below
13 099387-11 Pilot Tubing ( Use Replacement 099387-03 )
14 104635-01 Apron ( No Longer Available )
15 099066-02 Mounting Bracket ( No Longer Available )
16 099415-19 Gas Regulator
17 111421-01 Snap Bushing
18 107896-01 Heat Shield ( No Longer Available )
19 118626-01 Inlet Tube ( No Longer Available )
20 118721-01 Upper Baffle ( No Longer Available )
21 118633-01 Control Bracket ( No Longer Available )
22 119283-01 Fan Kit ( Use Replacment PP100A )
23 099038-01 Strain Relief Bushing ( Included with Fan Kit )
24 119664-01 Thermal Limit Switch( Included with Fan Kit )
25 118661-01 Housing Duct ( Included with Fan Kit )

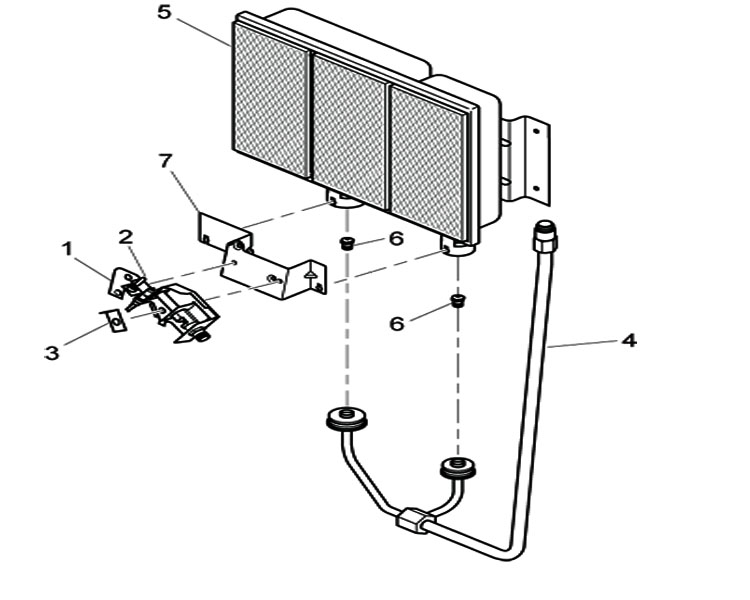

Comfort Glow Infraded Vent Free Burner Assembly

NZ100 Comfort Glow Infraded Heater Replacement Parts:

1 110803-03 ODS/Pilot
2 110186-01 Thermocouple Kit
3 109121-01 Pilot Shield
4 118628-01 Outlet Tube
5 099218-06 Burner Assembly, 3 Plaque
6 099056-24 Injector
7 105527-01 Pilot Mounting Bracket
The NZ100 Infraded wall Heater was manufactured by DESA under the Comfort Glow brand name.

Click Here for Owners Manual
