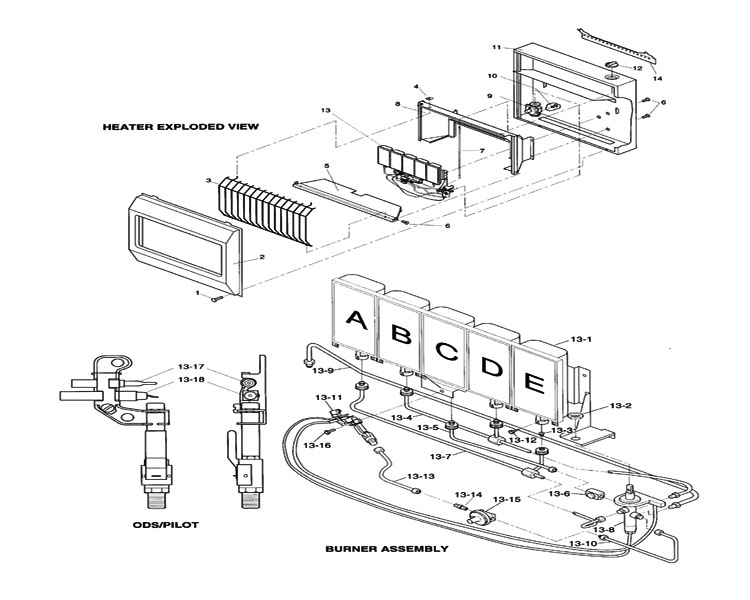

| 1 |
098304-01 |
Screw #10 x 3/8" |
| 2 |
098742-04 |
Front Panel ( No Longer Available ) |
| 3 |
098238-07 |
Grill Guard Assembly ( No Longer Available ) |
| 4 |
101108-01 |
Clip, Grill Guard ( No Longer Available ) |
| 5 |
098198-04 |
Apron ( No Longer Available ) |
| 6 |
M11084-26 |
Screw #10 x 3/8" ( No Longer Available ) |
| 7 |
098462-01 |
Control Rod Assembly ( No Longer Available ) |
| 8 |
098457-02 |
Reflector Assembly ( No Longer Available ) |
| 9 |
09967-05 |
Regulator ( No Longer Available ) |
| 10 |
M11084-38 |
Screw #8 x 3/8" |
| 11 |
098456-02 |
Cabinet Assembly ( No Longer Available ) |
| 12 |
098324-01 |
Control Knob ( No Longer Available ) |
| 13 |
See Details |
Burner Assembly |
| 13-1 |
099091-01 |
Burner ( No Longer Available ) |
| 13-2 |
098508-01 |
Valve Retainer Nut ( No Longer Available ) |
| 13-3 |
099056-02 |
Injector ( No Longer Available ) |
| 13-4 |
099052-01 |
Tubing-Valve to Plaque B & D ( No Longer Available ) |
| 13-5 |
099053-01 |
Tubing-Valve to Plaque C ( No Longer Available ) |
| 13-6 |
099057-01 |
Pressure Tap Fitting ( No Longer Available ) |
| 13-7 |
099054-01 |
tubing-Valve to Plaque A & E ( No Longer Available ) |
| 13-8 |
098932-06 |
Control Valve ( No Longer Available ) |
| 13-9 |
099051-02 |
Inlet Tubing ( No Longer Available ) |
| 13-10 |
099045-01 |
Pilot Tubing-Valve to regulator ( No Longer Available ) |
| 13-11 |
099059-01 |
ODS/ Pilot Assembly |
| 13-12 |
M11084-37 |
Screw #8 x 1/4" |
| 13-13 |
099047-01 |
Pilot Tubing -Regulator to pilot ( No Longer Available ) |
| 13-14 |
099058-01 |
Male Connector ( No Longer Available ) |
| 13-15 |
099964-01 |
Pilot Regulator ( No Longer Available ) |
| 13-16 |
M11084-26 |
Screw #10 x 3/8" ( No Longer Available ) |
| 13-17 |
098593-01 |
Thermocouple ( Use Replacement 098514-01 ) |
| 13-18 |
098594-01 |
Ignitor Electrode |
| 14 |
099066-01 |
Mounting Bracket ( No Longer Available ) |
