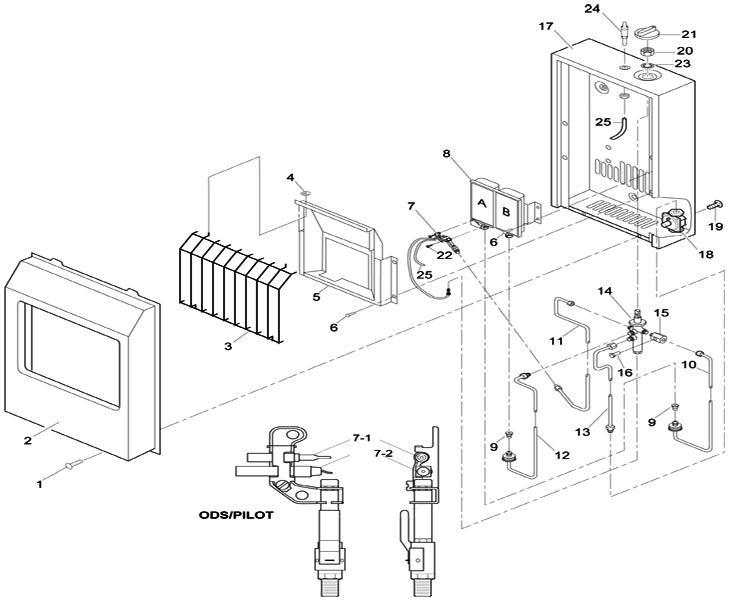

1 | 098304-01 | Screw, #10 x 3/8 " |
2 | 099467-04 | Front Panel Assembly,Earth Tone (CGN10R) ( No Longer Available ) |
| 099467-05 | Front Panel Assembly, Ivory (CGN10RL) |
3 | 099318-03 | Grill Guard ( No Longer Available ) |
4 | 101108-01 | Grill Guard Clip ( No Longer Available ) |
5 | 099469-02 | Reflector Assembly ( No Longer Available ) |
6 | M15823-37 | Screw Hex #8 x 1/4 " |
7 | 503329 | ODS/Pilot Assembly ( No Longer Available ) |
7-1 | 098514-01 | Thermocouple |
7-2 | 098594-01 | Ignitor Electrode |
8 | 099884-02 | Burner Assembly ( No Longer Available ) |
9 | 099056-06 | Injector ( No Longer Available ) |
10 | 099390-02 | Tubing - Valve to plaque A ( No Longer Available ) |
11 | 099387-05 | Pilot Tubing - Valve to pilot |
12 | 099392-01 | Tubing - Valve to plaque B ( No Longer Available ) |
13 | 099391-02 | Tubing - Regulator to valve ( No Longer Available ) |
14 |
100432-01 | Control Valve ( No Longer Available ) |
15 | 099057-01 | Pressure Tap Fitting ( No Longer Available ) |
16 | 098276-01 | 1/8 Pipe Plug |
17 | 099468-07 | Cabinet Assembly, Brown (CGN10R) ( No Longer Available ) |
| 099468-13 | Cabinet Assembly,Ivory (CGN10RL) |
18 | 099415-01 | Gas Regulator |
19 | 098303-02 | Screw, #6 x 5/16 " |
20 | 098508-01 | Valve Retainer Nut |
21 | 099393-01 | Control Knob ( No Longer Available ) |
22 | M11084-26 | Screw, #10 x 3/8 " ( No Longer Available ) |
23 |
099818-01 | Internal Tooth Washer |
24 | 102445-01 | Piezo Ignitor |
25 | 098271-03 | Ignitor Cable |
