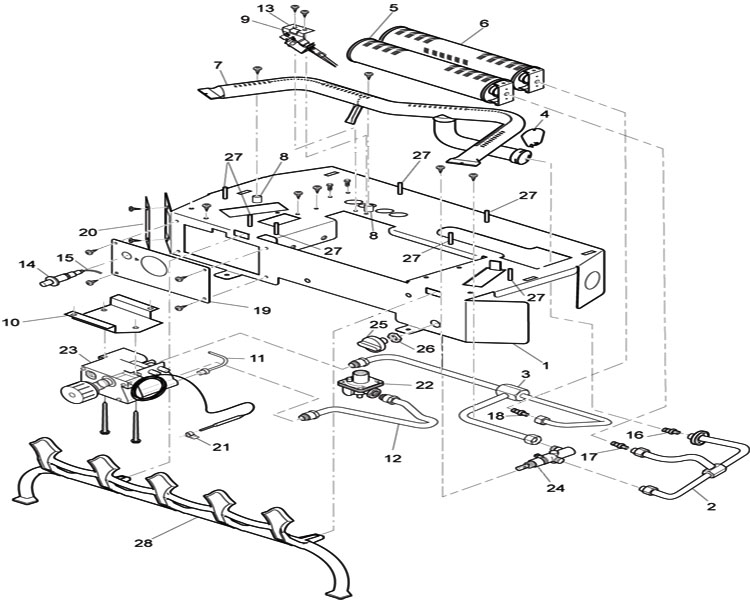

| 1 |
** |
Burner Carriage ( No Longer Available ) |
| 2 |
110061-03 |
Front and Rear Burner Tube ( No Longer Available ) |
| 3 |
110061-02 |
Middle Burner Tube ( No Longer Available ) |
| 4 |
111124-01 |
Retainer Spring ( No Longer Available ) |
| 5 |
110063-02 |
Front Blue Flame Burner ( No Longer Available ) |
| 6 |
110063-01 |
Middle Blue Flame Burner ( No Longer Available ) |
| 7 |
108105-02 |
Rear Burner ( No Longer Available ) |
| 8 |
107110-01 |
Spacer ( No Longer Available ) |
| 9 |
PP224 |
ODS Pilot ( Use Replacment 104286-01 ) |
| 10 |
102394-02 |
Control Bracket ( Use Replacment 102394-02SA ) |
| 11 |
099387-09 |
Pilot Tube |
| 12 |
108628-01 |
Inlet Tube ( No Longer Available ) |
| 13 |
110093-07 |
Pilot Mounting Bracket ( No Longer Available ) |
| 14 |
097159-04 |
Piezo Ignitor |
| 15 |
098271-10 |
Ignitor Cable |
| 16 |
099056-21 |
Burner Orifice Injector, Back |
| 17 |
101004-18 |
Burner Orifice Injector, Front ( No Longer Available ) |
| 18 |
101004-13 |
Burner Orifice Injector, Middle ( No Longer Available ) |
| 19 |
108692-02CK |
T-Stat Cover Plate ( No Longer Available ) |
| 20 |
108692-03 |
Remote Cover Plate ( No Longer Available ) |
| 21 |
102030-01 |
Thermobulb Clip |
| 22 |
098867-16 |
Gas Regulator (Propane/LP) |
| 23 |
098522-10 |
Thermostatic Gas Valve Kit ( Use Replacment 0630545 ) |
| 24 |
108106-01 |
Manual Control Valve ( No Longer Available ) |
| 25 |
099393-03 |
Control Knob ( No Longer Available ) |
| 26 |
098508-01 |
Valve Retainer Nut |
| 27 |
108631-01 |
Log Alignment Screw ( No Longer Available ) |
| 28 |
108111-01 |
Cast Iron Grate ( No Longer Available ) |
