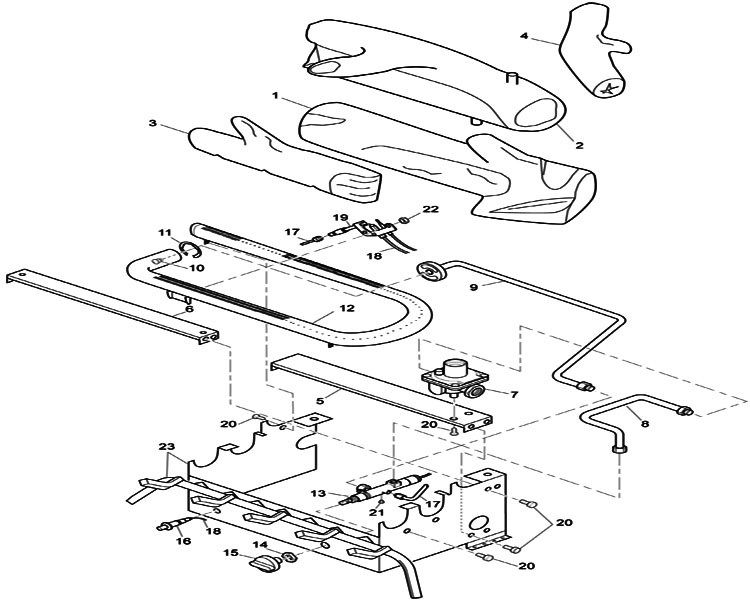

| 1 |
104933-02 |
Middle Log (#1) ( No Longer Available ) |
| 2 |
104934-02 |
Back Log (#2) ( No Longer Available ) |
| 3 |
104932-02 |
Front Log (#3) ( No Longer Available ) |
| 4 |
104935-02 |
Crossover Log (#4) ( No Longer Available ) |
| 5 |
102844-02 |
Lower Bracket ( No Longer Available ) |
| 6 |
102966-02 |
Upper Bracket ( No Longer Available ) |
| 7 |
098867-14 |
Gas Regulator |
| 8 |
102798-01 |
Inlet Tube |
| 9 |
102779-03 |
Outlet Burner Tube ( No Longer Available ) |
| 10 |
099056-26 |
Burner Orifice Injector |
| 11 |
102843-01 |
Burner Clip |
| 12 |
102980-01 |
Burner |
| 13 |
102568-07 |
Control Valve ( No Longer Available ) |
| 14 |
098508-01 |
Valve Retainer Nut |
| 15 |
098354-01 |
Control Knob |
| 16 |
102445-01 |
Piezo Ignitor |
| 17 |
099387-08 |
Pilot Tube |
| 18 |
098271-07 |
Ignitor Cable ( No Longer Available ) |
| 19 |
104285-01 |
ODS Pilot |
| 20 |
M11084-38 |
Screw, Hex Head (#8-18 x .38) |
| 21 |
098276-01 |
Hex Head Plug, 1/8 NPT " |
| 22 |
098249-01 |
Nut, M5 |
| 23 |
102775-04CK |
Painted Base Assembly ( No Longer Available ) |
