Comfort Glow Vent Free Gas Logs

ccl3924nta

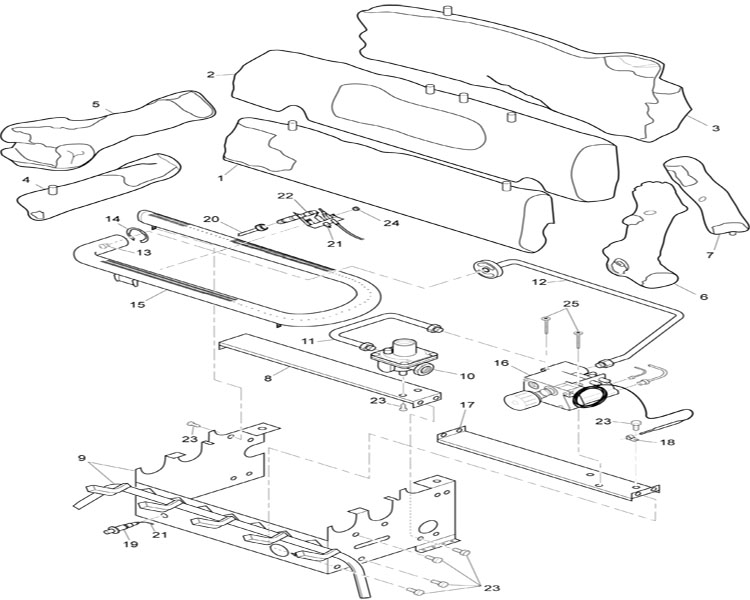

CCL3924NTA Comfort Glow Natural Gas Vent Free Logs Replacment Parts:

1 105923-02 Front Log (#1) ( No Longer Available )
2 105924-02 Middle Log (#2) ( No Longer Available )
3 105925-02 Back Log (#3) ( No Longer Available )
4 105926-02 Left Back Crossover Log (#4) ( No Longer Available )
5 105927-03 Left Top Crossover Log (#5) ( No Longer Available )
6 105928-02 Right Bottom Crossover Log (#6) ( No Longer Available )
7 105929-02 Right Top Croosover Log (#7) ( No Longer Available )
8 102844-01 Lower Bracket
9 102775-07CK Painted Base Assembly ( No Longer Available )
10 098867-14 Gas Regulator
11 102981-01 Inlet Tube
12 102983-01 Outlet Burner Tube ( No Longer Available )
13 099056-16 Burner Orifice Injector
14 102843-01 Burner Clip
15 102772-01 Burner
16 101329-20 Thermostat Gas Valve Assembly ( Use Replacment 0630546 )
17 102979-01 Thermostat Bracket ( No Longer Available )
18 098544-01 Thermostat Clip
19 102445-01 Piezo Ignitor
20 099387-09 Pilot Tube
21 098271-10 Ignitor Cable
22 104285-01 ODS Pilot
23 M11084-38 Hex Screw, #8-18 x .38
24 098249-01 Nut, M5
25 099211-01 Hex Screw, 10-16 x 2.50



The CCL3924NTA Gas Logs System was manufactured by DESA under the Comfort Glow brand name.

Click Here for Owners Manual



Accessories:

GA6050 Fireplace Hood
