Comfort Glow Blue Flame Vent Free Heater

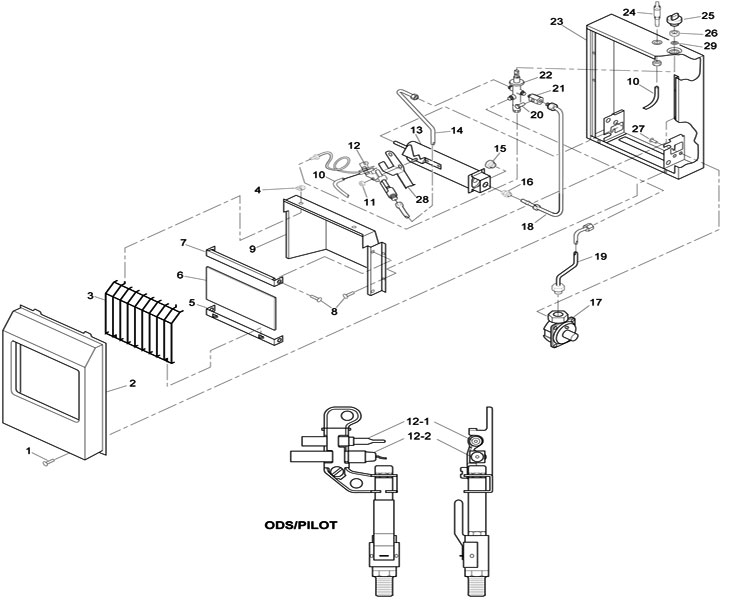

CGP6L Comfort Glow Blue Flame Heater Replacement Parts:

1 098304-01 Screw, #10 x 3/8 "
2 099467-05 Front Panel (Ivory) ( No Longer Available )
3 099318-04 Grill Guard ( No Longer Available )
4 098342-01 Grill Guard Clip ( No Longer Available )
5 102018-01AA Bottom Glass Retainer ( No Longer Available )
6 098260-03 Glass Panel ( No Longer Available )
7 098532-03AA Top Glass Retainer ( No Longer Available )
8 M11084-38 Screw, #8 x 3/8 "
9 098352-03BR Deflector Unit ( No Longer Available )
10 098271-03 Ignitor Cable
11 098249-01 Nut, M5
12 099059-03 ODS/Pilot Assembly
12-1 098514-01 Thermocouple
12-2 098594-01 Ignitor Electrode
13 099386-02 Burner ( No Longer Available )
14 099387-05 Pilot Tubing
15 098251-08 Injector ( No Longer Available )
16 099463-01 Injector Holder ( No Longer Available )
17 099415-02 Pressure Regulator ( Use Replacement 099415-18 )
18 099462-01 Burner Tubing
19 099391-02 Regulator Tubing ( No Longer Available )
20 098276-01 1/8 NPT Plug "
21 099057-01 Pressure Tap Fitting ( No Longer Available )
22 099413-02 Control Valve ( No Longer Available )
23 099468-14 Cabinet Assembly (CGP6L Only) ( No Longer Available )
Cabinet Assembly (CGP10L Only)
24 102445-01 Piezo Ignitor
25 099393-01 Control Knob ( No Longer Available )
26 098508-01 Valve Retainer Nut
27 098303-02 Screw, #6 x 5/16 "
28 099553-01 Pilot Shield
29 099818-01 Internal Tooth Washer
The CGP6L Blue Flame wall Heater was manufactured by DESA under the Comfort Glow brand name.
